Downlights
LS Downlight
Features:
- Integrated motion and daylight sensor and Smart wireless network combined with an extremely efficient LED lamp
- Easy installation with surface-mount and recessed frames
- Sensor information can be shared between all Bever Smart devices
- Intuitive operation and analysis with the Bever App
- Protected against dust and water ingress
- Available in multiple LED colours, optics and number of LEDs
- Light Normaliser - No lumen loss during lifetime

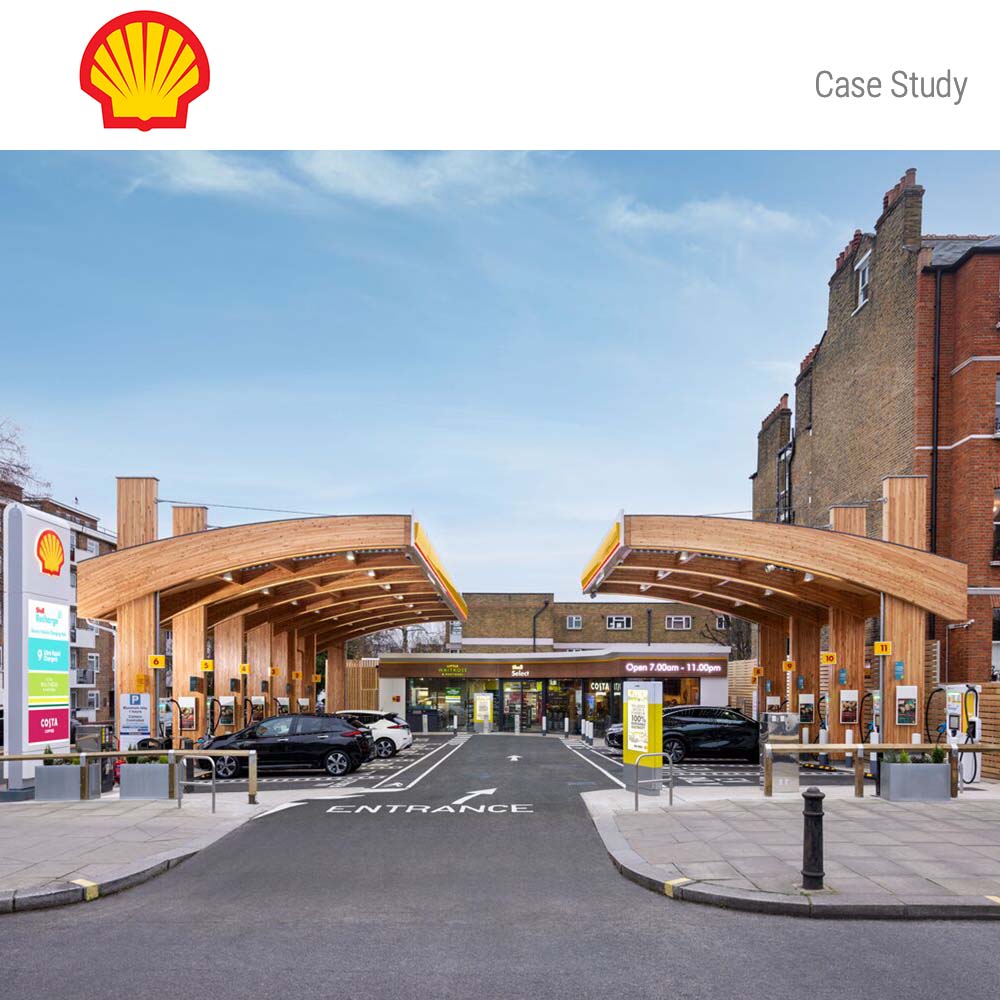

Canopy lighting is essential for a forecourt. The forecourt should be a welcoming and safe environment for customers at all times, and the LS downlight has been specifically designed to save energy and costs while maximising visibility.
With built-in daylight and motion sensors, each luminaire provides the right amount of light at the right time and, thanks to the lenses used, in the right place. The LS downlights are available in a range of colour temperatures so that, as well as providing optimum visibility, they also comply with the relevant regulations. (Think stray light, bats and moths).
The luminaires are also dust and waterproof for optimum reliability in more extreme climates.
The wide range of recessed and surface-mounted frames means that the luminaires can be easily installed at any station. In addition, the LS downlights are easy to adjust using the Bever App, with options to select the right light intensity and dimming pattern.
Finally, the LS Downlights are equipped with an integrated Bever Smart Technology plug & play wireless network. This allows them to communicate with each other and with all other Bever Smart products.
Advantages:
Various lenses
Sensors and Smart Technology
All downlights are fitted as standard with motion and daylight sensors and wireless Bever Smart Technology. This allows for a secure plug and play creation of a wireless encrypted network.
Examples: It allows all lights to be switched off when there is sufficient daylight, so that lights are not left on unnecessarily. Motion can activate area lighting so that the customer has a nicely lit driveway.
Multi-site management
Easy installation
Various mounting options:
Mounting plate (standard)
Mounting plate (Low profile)
Coverplate (Mini 300). Outside dim. 400x400mm. Roofhole dim. 360x360mm. White.
Coverplate (MPF). Outside dim. 520x520mm. Roofhole dim. 470x470mm. White.
Coverplate. Outside dim. 670x670mm. Roofhole dim. 600x600mm. White.
Coverplate (ParkerSell). Outside dim. 620x450mm. Roofhole dim. 560x410mm. White.
Dimensions:
cubiq direct mount
This smaller rectangular LED luminaire comes complete with a flat bezel and is a versatile all-rounder.
The Cubiq Direct Mount provides good lighting where recessed space is limited.
Features:
- Fixture is rectangular and fitted with a flat recessed frame as standard
- Movement sensor is optional
- The luminaire operates at low voltage and is centrally powered
- Several luminaires can be connected to 1 power supply
- Different lengths of connecting cables available
- Sensor information can be shared between all Bever Smart devices
- Intuitive operation and analysis with the Bever App
- Available in multiple LED colours and number of LEDs
The CubiQ Direct-Mount luminaire can be used as canopy lighting or spot lighting in situations where lower lighting levels are sufficient or in situations, where many different light points are desired.
The CubiQ is a low-voltage lighting system. The system operates on a central power supply and multiple units can be controlled from one driver. This is not only of benefit for spaces that are hard-to-reach, but also for locations where temperatures can be high.
A motion sensor is optional and gives the lamp the right amount of light at the right time. The CubiQ Direct Mount is available in multiple colour temperatures, so that in addition to optimum visibility, the right regulations can always be met. (Think of stray light, bats and moths).
Furthermore, the lamps, cables, power supply and sensors are dust- and waterproof, ensuring optimum reliability even in more extreme climate conditions. The different cover plates make it easy to apply the lamps to any station. The CubiQs are also easy to set using the Bever App. With this, the right light intensity and the desired dimming pattern can be selected. Of course, the CubiQ Direct Mount also features the integrated Bever Smart Technology and creates a wireless plug & play network.
Advantages:
- Small and flat luminaire for locations with limited installation space
- Waterproof module
- Multiple dimensions in terms of installation frame available
- Flexible and modular with separate/external power supply
- Various waterproof cable solutions available
- Available in multiple numbers of LEDs and colour temperatures
- Easily equipped with dimmer
- Bever Smart available as standard
Mounting options:
Linear
Features:
- Ideal for EV canopies, modern fuel stations and space-constrained applications.
- Available in multiple lengths and wattages.
- Set by default to save energy with integrated motion sensor.
- Ability to adjust settings locally as required with Bever App.
- Flexibility in mounting options.
- Special lens optics direct light to where it is needed.
- Long service life through use of high-quality components.
This linear luminaire is a slim and stylish solution for space-constrained applications. A wide variety of wattages and optics make it an ideal luminaire at loading canopies, low spaces and for car parks. With the various mounting accessories, this luminaire can be both recessed and surface-mounted easily.
In doing so, the linear is both versatile and energy-efficient due to the added daylight and motion sensor. This provides additional convenience and energy savings as the lighting automatically adjusts itself. The luminaire will dim to a lower light intensity when there is no movement. During the day, when there is sufficient natural light, the luminaire can automatically dim back (fully). This is not only convenient, but also saves energy and extends the lamp's lifetime.
Several lens optics are possible. By using these special optics, light is directed to where it is needed, such as charging posts, pumps, or desired parking spaces.
Bever Smart Tech, which is available as standard in the Linear, allows linking different luminaires and other Bever Smart products. Linking allows the luminaires to work together seamlessly as one and use the information from the sensors together. This makes it possible to provide the best lighting solution with minimal energy costs.
Advantages:
- Designed specifically for outdoor use in EV and fuel station canopies, the luminaire complies with industry specifications.
- Lens optics ensure the right light distribution, minimising stray light outside the canopy and not disturbing nature and local residents.
- Settings of the luminaires can be adjusted as desired via the app.
- With the IC-Smart, it is even possible to read out data on the status and energy consumption of each luminaire from a remote location.
Dimensions:
LED Batten
Features:
- Standard model: CRI > 80: 4000 K.
- System efficiency: 163 lm/W.
- Degree of protection: IP66/IP69.
- Minimum ambient temperature: ta = -25 °C.
- Maximum ambient temperature: ta = 50 °C.
- Lifespan: 50000 uur / L90/B10.
- Unified Glare Ratio (UGR): from 21,4 to 26,2.
- Impact resistance: IK10
- All models incl. stainless steel hooks and stainless steel brackets.
- Suitable for wall mounting and surface mounting.
- Certification ENEC, CB, HACCP, CE.
The luminaire is suitable for industrial indoor and outdoor covered areas, warehouses, agricultural buildings, sports grounds, workshops, garages, transport terminals, utilities and laboratories without explosion hazard. A special EXzone version is available for this purpose.
The luminaire's design complies with IP69 and HACCP and is therefore also a good choice for the food industry.
The base and diffuser are made of clear polycarbonate and offer high impact and deformation resistance. Emissions in the operating environment can reduce the usability of the plastics.
Specifications:
- Housing: grey PC (high mechanical resistance, UV stability, RAL 7035).
- Diffuser: translucent PC (high mechanical resistance, UV stability).
- Reflector: sheet steel, white (RAL 9003).
- Clips: polyamide + 15% fibreglass, stainless steel + polyamide.
- Seal: polyurethane (PUR), foam-filled base groove.
Mounting:
